Azure Deployment Architecture

Overview

AVA is deployed exclusively as a single-tenant application within your Azure tenant. Unlike traditional SaaS offerings, AVA runs entirely in your Azure environment, giving you complete control over data residency, security, and compliance.

Single-Tenant Only: AVA is never deployed as a multi-tenant SaaS. Each customer gets their own isolated deployment in their Azure tenant.

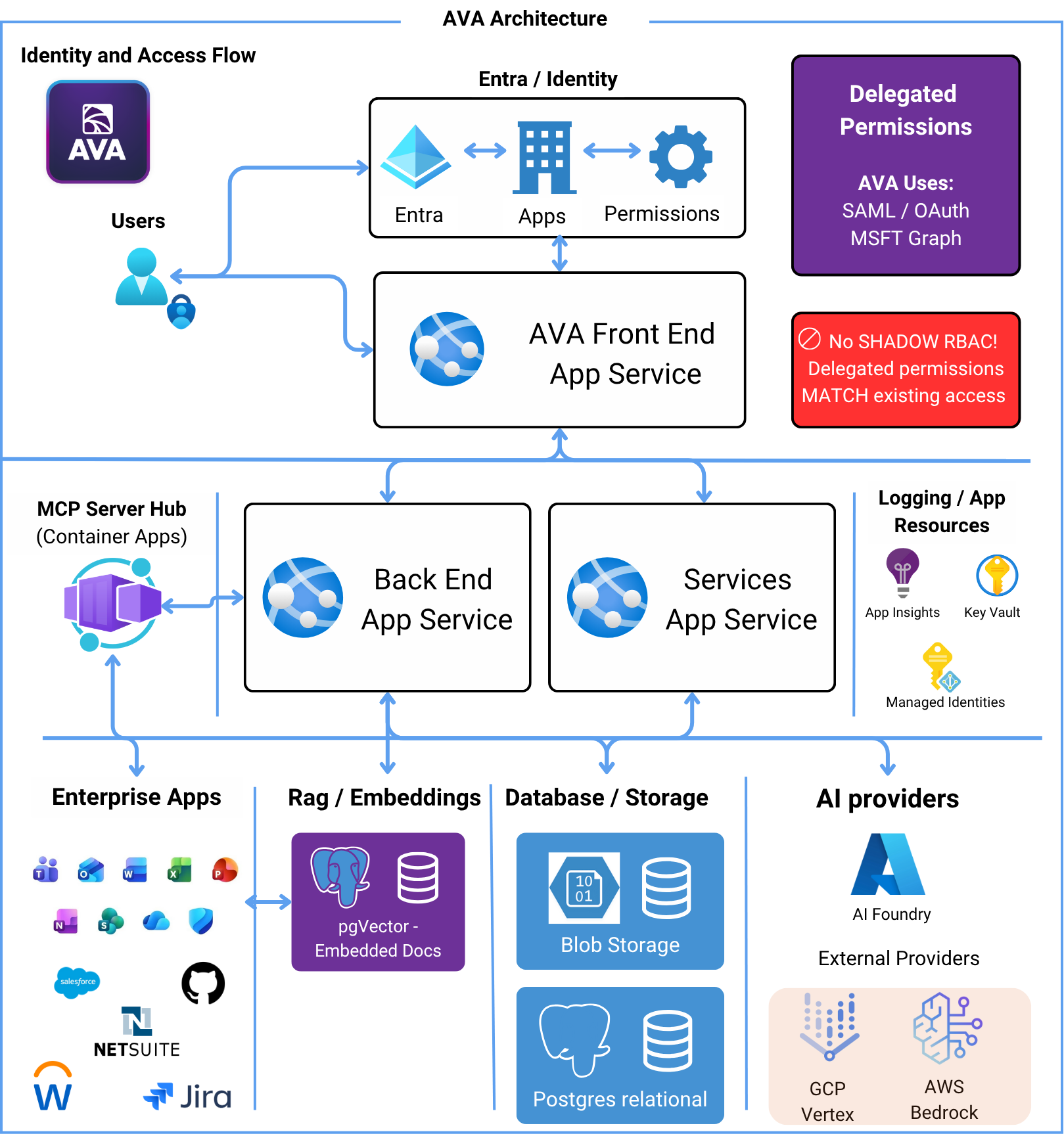

Core Azure Components

AVA leverages managed Azure services to provide a secure, scalable, and maintainable enterprise AI platform:

Azure App Services

Frontend React application hosting

Azure Container Apps

Backend Python services and MCP servers

Azure PostgreSQL Flexible Server

Primary data store with pgVector for embeddings

Azure Key Vault

Secrets management and configuration

Azure AI Foundry

AI model deployment and orchestration

Microsoft Entra ID

Identity, authentication, and authorization

Architecture Layers

1. Identity & Access Layer

Microsoft Entra ID provides the foundation for security:

Enterprise App: Registered in your Entra ID for SSO
App Registration: Defines API permissions and scopes
Managed Identity: Backend services use managed identity to access Key Vault
Delegated Permissions: AVA operates with user permissions (no elevated access)

2. Frontend Layer

Azure App Service hosts the React-based web application:

Static web hosting with CDN integration
TLS/SSL termination
Custom domain support (e.g., ava.yourcompany.com)
Automatic scaling based on user load

3. Backend Services Layer

Azure Container Apps runs the Python-based backend services:

RESTful API for frontend communication
Business logic orchestration
AI model interaction
Task execution engine
Knowledge Search processing

Key features:

Auto-scaling based on CPU/memory/request metrics
Zero-downtime deployments
Built-in load balancing
Integrated with Azure Monitor for observability

4. MCP Server Layer

Model Context Protocol (MCP) servers run as dedicated Container Apps: Each integration (Microsoft 365, Salesforce, Jira, GitHub, NetSuite, etc.) is deployed as a separate container app that:

Uses your existing SSO configuration per application
Operates with delegated user permissions
Scales independently based on usage
Communicates securely with backend services

Example MCP Servers:

mcp-microsoft365: Calendar, Mail, Files, Teams integration
mcp-salesforce: CRM data access
mcp-jira: Project management
mcp-github: Repository and code access
mcp-netsuite: Business records

5. Data Layer

Azure PostgreSQL Flexible Server with pgVector extension:

Primary application database
Vector embeddings storage for Knowledge Search (RAG)
High availability with zone redundancy
Automated backups with point-in-time restore
Private endpoint for network isolation

6. AI Provider Layer

Azure AI Foundry (and optional AWS Bedrock, GCP Vertex):

Model deployment and hosting
Token usage tracking
Content filtering
Multi-model support (GPT-5 series, GPT-image-1, Claude 4 series, Gemini 2.5, etc.)
Cost optimization through model selection

Security Architecture

Managed Identity Pattern

AVA backend services use Azure Managed Identity to access resources:

Backend Container Apps → Managed Identity → Azure Key Vault → Secrets
                      ↓
              Azure PostgreSQL (via managed identity)
                      ↓
              Azure AI Foundry (via managed identity)

Benefits:

No credentials stored in code or configuration
Automatic credential rotation
Azure AD authentication for all services
Audit trail through Azure Monitor

Network Security

Private Endpoints: Database and Key Vault accessible only within VNet
No Public Internet Exposure: Backend services communicate via internal networking
TLS Everywhere: All communication encrypted in transit
Azure DDoS Protection: Standard protection for public-facing services

Data Protection

Encryption at Rest: Azure Storage/Database encryption enabled by default
Encryption in Transit: TLS 1.3 for all communications
Key Management: All keys stored in Azure Key Vault with FIPS 140-2 compliance
Data Residency: Data never leaves your Azure tenant

Deployment Sizing

AVA deployment is right-sized to your organization based on:

Number of users
Expected usage patterns
Connected data sources
Knowledge Search corpus size
Performance requirements

Small Deployment (< 100 users)

App Service: P1V3 (2 vCPU, 8 GB RAM)
Container Apps:
- Backend: 1-2 replicas, 0.5 vCPU, 1 GB RAM each
- MCP servers: 1 replica each, 0.25 vCPU, 0.5 GB RAM
PostgreSQL: B_Standard_B1ms (1 vCPU, 2 GB RAM, 32 GB storage)

Medium Deployment (100-500 users)

App Service: P1V3 (2 vCPU, 8 GB RAM)
Container Apps:
- Backend: 2-4 replicas, 0.5 vCPU, 1 GB RAM each
- MCP servers: 1-2 replicas each, 0.5 vCPU, 1 GB RAM
PostgreSQL: B_Standard_B2s (2 vCPU, 4 GB RAM, 64 GB storage)

Large Deployment (500+ users)

App Service: P2V3 (4 vCPU, 16 GB RAM) with autoscale
Container Apps:
- Backend: 4-8 replicas, 1 vCPU, 2 GB RAM each
- MCP servers: 2-3 replicas each, 0.5 vCPU, 1 GB RAM
PostgreSQL: GP_Standard_D2s_v3 (2 vCPU, 8 GB RAM, 128 GB storage)

Performance Tuning: All deployment sizes can be scaled up or down based on actual usage patterns and performance requirements.

Scaling Strategy

Horizontal Scaling

AVA automatically scales based on metrics:

Frontend (App Service): CPU and memory-based autoscale rules
Backend (Container Apps): Request count, CPU, memory triggers
MCP Servers: Independent scaling per integration based on usage

Performance Optimization

As usage grows, AVA can be optimized by:

Increasing Container App Replicas: More concurrent request handling
Scaling Database Tier: Better query performance for large datasets
Adding Read Replicas: Offload read traffic from primary database
Optimizing AI Model Selection: Balance cost vs performance per use case

Monitoring & Observability

All Azure resources integrate with Azure Monitor:

Application Insights for frontend/backend telemetry
Container Apps logs and metrics
Database performance metrics
Key Vault access logs
Cost analysis and optimization recommendations

Deployment Process

Prerequisites

Azure subscription with Owner or Contributor role
Microsoft Entra ID admin access
Custom domain (optional but recommended)

Infrastructure Provisioning

DataRM provisions all Azure resources in your tenant using Infrastructure as Code (Bicep and ARM templates):

Resource Group creation
App Service and Container Apps
PostgreSQL database with pgVector
Key Vault for secrets
Managed identities and role assignments

Identity Configuration

Configure Microsoft Entra ID:

Create Enterprise Application
Register App Registration with API permissions
Configure delegated permissions
Assign users/groups

MCP Server Deployment

Deploy and configure MCP servers:

Microsoft 365 (automatic for Entra users)
Salesforce (requires Salesforce Connected App)
Jira (requires Jira OAuth app)
GitHub (requires GitHub App)
Other integrations as needed

AI Provider Setup

Connect to AI providers:

Azure AI Foundry (primary)
AWS Bedrock (optional)
GCP Vertex (optional)
Configure model access and quotas

Validation & Testing

User authentication testing
Data source connectivity verification
Performance baseline testing
Security configuration audit

Go-Live

DNS configuration for custom domain
User onboarding and training
Monitoring and alerting setup
Handoff to customer admin team

Maintenance & Updates

Automated Updates

AVA backend services (Container Apps) support blue-green deployment:

New version deployed alongside existing version
Traffic gradually shifted to new version
Zero-downtime updates
Automatic rollback on errors

Database Migrations

Schema changes applied via automated migration scripts
Backward-compatible migrations ensure zero downtime
Point-in-time restore available for rollback

Security Patching

Azure platform handles OS-level patching
Container images rebuilt monthly with security updates
Critical vulnerabilities patched within 48 hours

Cost Optimization

Estimated Monthly Cost

AVA Pricing: Monthly costs range from $500 to$ 2,500 depending on your organization size and number of users. Pricing includes all Azure infrastructure, AI model usage, and platform features.

Cost varies based on:

Number of active users
AI model usage patterns
Connected data sources
Knowledge Search corpus size
Performance requirements

AI Token Costs: The largest variable cost is AI model usage. Optimize by choosing appropriate models per task (e.g., GPT-5 Mini/Nano, Claude Haiku 4.5, or Gemini 2.5 Flash-Lite for simple tasks, GPT-5 Pro/Claude Opus 4.1 for complex reasoning).

Optimization Strategies

Auto-scaling: Scale down during off-hours
Reserved Instances: 1-year commitment saves 30-40%
Model Selection: Use GPT-5 Mini/Nano, Flash, or Haiku models for routine tasks; reserve GPT-5 Pro/Opus for complex analysis
Corpus Optimization: Limit Knowledge Search corpora to essential documents
Resource Right-Sizing: Monitor and adjust compute resources based on actual usage

Disaster Recovery

Backup Strategy

Database: Automated daily backups with 7-day retention (configurable to 35 days)
Point-in-Time Restore: Restore to any point within retention window
Configuration Backup: Key Vault secrets backed up to separate storage account
Code Repository: Infrastructure as Code stored in source control

High Availability

Zone Redundancy: PostgreSQL and Container Apps deployed across availability zones
Automatic Failover: Database failover in < 2 minutes
Load Balancing: Built-in load balancing for Container Apps
Health Checks: Automatic unhealthy instance replacement

Business Continuity

RTO (Recovery Time Objective): < 4 hours
RPO (Recovery Point Objective): < 15 minutes
Geo-Replication: Optional for enterprise customers (additional cost)

Compliance & Security

Leverage Your Existing Azure Certifications

Inherit Your Tenant’s Compliance: Because AVA runs entirely within your Azure tenant, you automatically inherit all existing Azure certifications and compliance frameworks your organization has already achieved.

Key Benefits:

No Separate Compliance Audit: AVA lives within your already-certified Azure environment
Your Security Policies: All existing Azure security policies, governance, and controls apply to AVA
Data Residency: Data stays within your tenant’s geographic boundaries and compliance zones
Existing Certifications: Leverage your Azure tenant’s SOC 2, ISO 27001, HIPAA, FedRAMP, GDPR, PCI DSS, and other certifications

How It Works:

Single-Tenant Architecture: AVA deploys as resources in your Azure subscription
Azure’s Shared Responsibility Model: Infrastructure compliance handled by Azure, application security configured during deployment
Your Governance: AVA respects all Azure policies, RBAC, and compliance frameworks you’ve implemented
Audit Trail: All AVA activity logged through your existing Azure Monitor and Application Insights

Simplified Compliance: By running in your Azure tenant, AVA doesn’t introduce new compliance challenges—it operates within your already-certified cloud environment.
